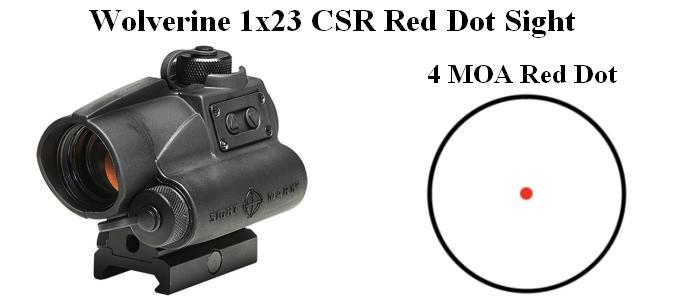

Wolverine 1x23 CSR Red Dot Sight

Wolverine 1x23 CSR Red Dot Sight


$155.99 $129.99


Order# SM303

Order# SM301

The Sightmark Wolverine CSR Red Dot Sight is designed specifically for shotguns and short-barreled rifles. The CSR sports a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Compact and light, the CSR model weighs only 10.3 ounces, and along with the FSR, offers very low power consumption. The CSR also offers variable brightness and night vision modes, which enables the ability to co-witness with a night vision sight. The rugged Wolverine line of sights from Sightmark delivers unlimited eye relief and first-class battery life using just a single AA battery in a durable, shockproof design. The responsive Wolverine sights are housed in a single piece of 6061-T6 aluminum that is rubber-armored and protected by a scratch resistant, anti-reflective lens coating. Fog proof and nitrogen purged, the Wolverine family of sights is designed to provide shooters the ability to take aim in a variety of conditions and temperates ranging from -22 to 122 F. The Wolverine was built to adapt and is ready for anything. Both models sport an IP67 waterproof rating and are submersible to three feet. Wolverine red dot sights have an adjustable mount height and are compatible with Picatinny mounts.



Reticle Type        4 MOA Dot

Reticle Color      Red

Illuminated Reticle         yes

Brightness Setting            off, NV1, NV2, 3-10

Magnification    1 x

Window Dimension        23 mm

Window Material             glass

Eye Relief              unlimited mm

Windage Range of Adjustment  120 MOA

Elevation Range of Adjustment                   120 MOA

MOA Adjustment               1 MOA

Finish/Color        Matte black

Body Materal     Aluminum 6061-T6 / rubber

Maximum Recoil               800 g's

IP Standard         IP67 (submergible to 1m / 3ft)

Shockproof          yes

Fog Proof               yes

Lens Coating      AR red

Mount Type         Weaver/Picatinny

Battery Type       AA

Battery Life         (high) 900 - (low) 1,000,000 / 50,000 (setting 6) hours

Battery Voltage                  1.5 V

Operating Temp,°F/°C    -22 to 122 / -30 to 50 F/C

Length  33.3 / 84 in/mm

Width    2.8 / 71.6 in/mm

Height   2.4 / 61.1 in/mm

Weight 10.3 oz
