Ultra Shot Reflex Sight, 4 Pattern Red Reticle

Ultra Shot Reflex Sight, 4 Pattern Red Reticle

$95.99 $79.99

Order# SM302

Order# SM302

Incredibly lightweight for its size, the Ultra Shot™ is the biggest and baddest sight in the Sightmark® reflex sight line. Perfect for shotguns or rifles, the Ultra Shot Reflex Sight is equipped with a built-in, integrated weaver mount, which fits all standard Picatinny or Weaver bases. The device also features four brightly lit reticle patterns, adjustable brightness settings and a wide field-of-view. With its sturdy, anodized aluminum construction, shooters can rest assured the unit will withstand heavy recoil from larger calibers.

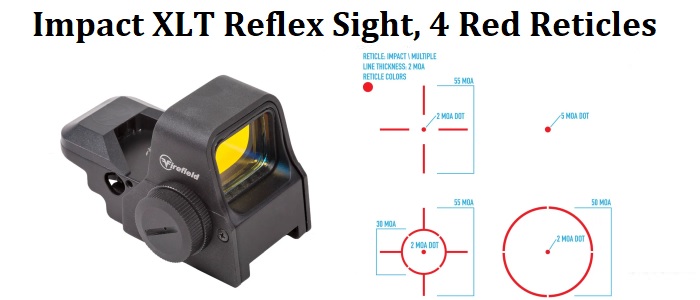

Reticle Type        4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)

Reticle Color      Red

Illuminated Reticle         yes

Brightness Setting            1-5 and off

Magnification    1 x

Window Material             glass

Objective Aperture          33x24 mm

Field of View       35 m @100m

Field of View       105 ft @100yd

Eye Relief              infinite

Windage Range of Adjustment  50 MOA

Elevation Range of Adjustment                   50 MOA

MOA Adjustment               1 per click

Parallax Setting                 25 yd

Finish/Color        matte black

Body Materal     aluminum

Maximum Recoil               1,500 g's

IP Standard         IPX4

Shockproof          yes

Fog Proof               yes

Lens Coating      AR red

Battery Type       CR1632

Mount Type         Weaver

Battery Life         (high) 25 - (low) 120 Hours

Battery Voltage (V)           3 V

Operating Temp,°F/°C    0 to 120 / -17 to 49 F/C

Storage Temperature (°C/°F)       14 to 140 F

Length  3.23 / 82 in/mm

Width    1.81 / 46 in/mm

Height   2.24 / 57 in/mm

Weight 5.6 oz
